Pick Up Models

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

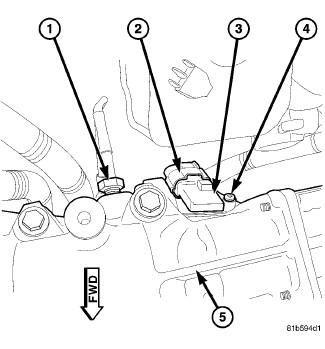

Fig 1: Intake Manifold Air Temperature Sensor/MAP Sensor (2)

Courtesy of CHRYSLER GROUP, LLC

The combination, dual function Intake Manifold Air Temperature Sensor/MAP (IAT/MAP) (3) sensor is installed into the intake air connection manifold, below, and to the rear of the EGR valve (5).

Clean area around sensor.
Disconnect electrical connector (2) from IAT/MAP sensor.
Remove mounting screw (4).
Remove sensor from manifold.
Check condition of sensor O-ring.
