Module, Integrated Trailer Brake (ITBM): Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

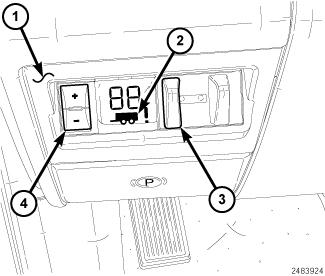

Fig 1: Integrated Trailer Brake Module (ITBM)

Courtesy of CHRYSLER GROUP, LLC

Position the Integrated Trailer Brake Module (ITBM) (1) and snap the bottom retainer clips into place.

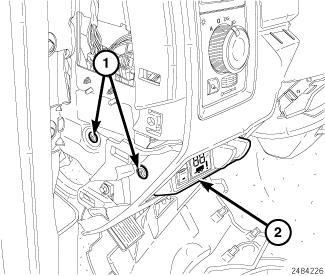

Fig 2: Identifying ITBM Retainer Screws
Courtesy of CHRYSLER GROUP, LLC

NOTE:
One screw on the right front of the ITBM not shown in illustration.
Install the three ITBM retainer screws (1).

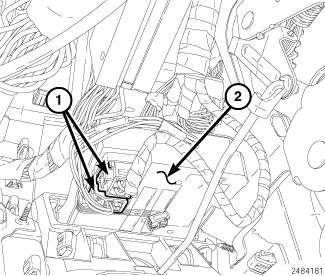

Fig 3: Identifying Integrated Trailer Brake Module (ITBM) Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Connect the ITBM electrical connectors (1).

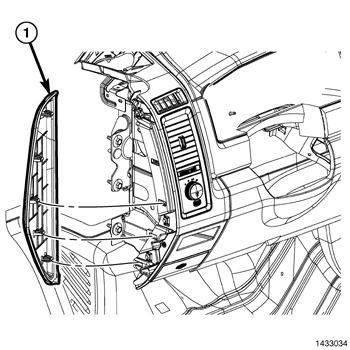

Fig 4: Instrument Panel Side Cover
Courtesy of CHRYSLER GROUP, LLC
Position the left instrument panel side cover (1) and press the retainers into place in the IP.

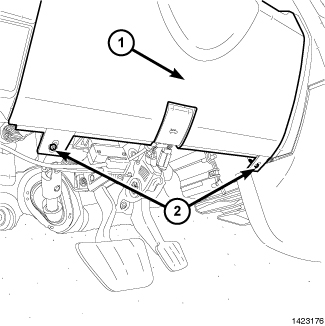

Fig 5: Steering Column Opening Cover & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Position the steering column opening cover (1) and press the upper retainers into place in the IP.
Install the steering column opening cover retaining screws (2).
Connect the battery negative cable.
