CONNECTOR, Data Link: Description: Description

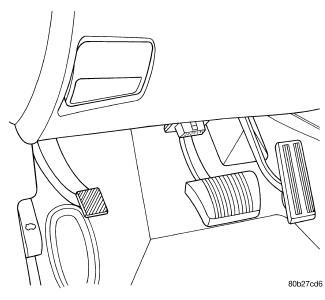

Fig 1: Data Link Connector
GC0114262Courtesy of CHRYSLER LLC

The data link connector is located inside the vehicle, below instrument panel next to the center column.
