RECEIVER, Wireless Ignition Node: Installation: Installation
WARNING: This page is about a different car, the 2010 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect the electrical connector (1) to the Wireless Ignition Node (WIN) and position the WIN back into the instrument panel.

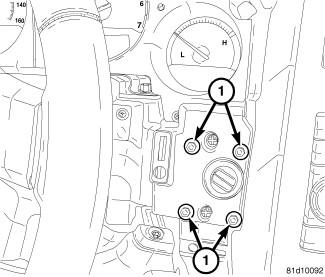

- Install the four screws (1) through the instrument panel into the WIN.
- Install the instrument panel trim cover. Ensuring that the cover snaps into the securing clips.

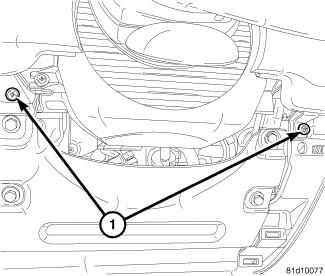

- Install the two lower instrument panel screws (1).
- Install the lower steering column cover reinforcement and the steering column trim cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation .
- Connect the battery negative cable.
- Program the WIN following the Module/Programming Order Replacement Guide and Module Programming procedures. See Electrical/Electronic Control Modules - Standard Procedure .
