MODULE, Door: Installation: Installation

WARNING: This page is about a different car, the 2010 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.

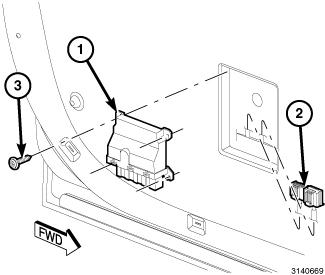

Fig 1: Removing/Installing Door Wire Harness Connectors
GC0139344Courtesy of CHRYSLER LLC
  1. Position the door control module (1) to the door inner panel.
  2. Install and tighten the screws (3) that secure the door control module to the door inner panel. Tighten the screws securely.
  3. Reconnect each of the door wire harness connectors (2) to the connector receptacles of the door control module.
  4. Reinstall the trim panel to the inside of the door. Refer to Body/Door - Front/PANEL, Door Trim - Installation .
  5. Reconnect the battery negative cable.
