Home >> Chrysler >> 2010 >> 300 C, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Driver Door Module (DDM) - Electrical Diagnostics >> DTC Troubleshooting >> B1D4D-Memory Switch Input Circuit Stuck >> Circuit Schematic

Circuit Schematic

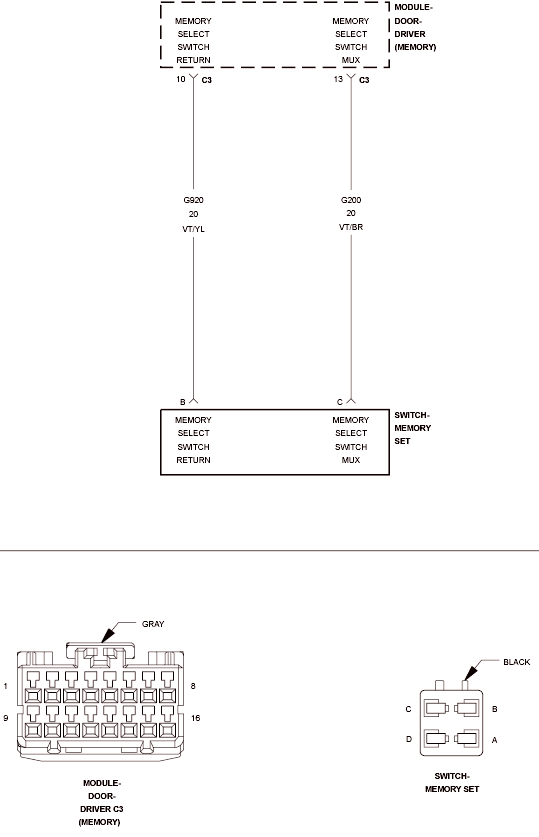

Fig 1: Memory Select Switch Circuit Schematic

GC0096545

Courtesy of CHRYSLER LLC
