P0952-AUTOSTICK Input Circuit Low: Notes

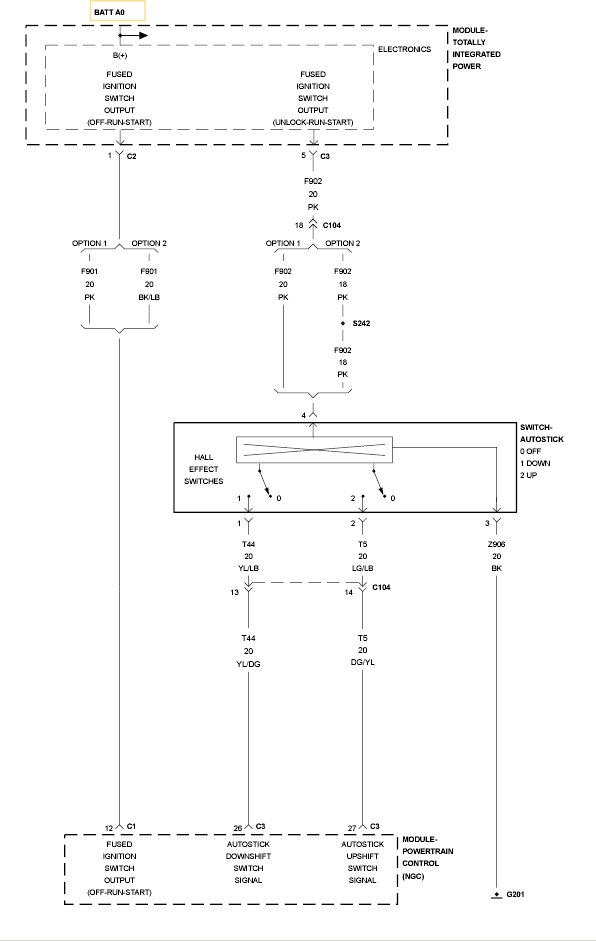

Fig 1: Autostick Input Circuit

GC0117410

Courtesy of CHRYSLER LLC
