U0126-Lost Communication With Steering Angle Sensor: Notes

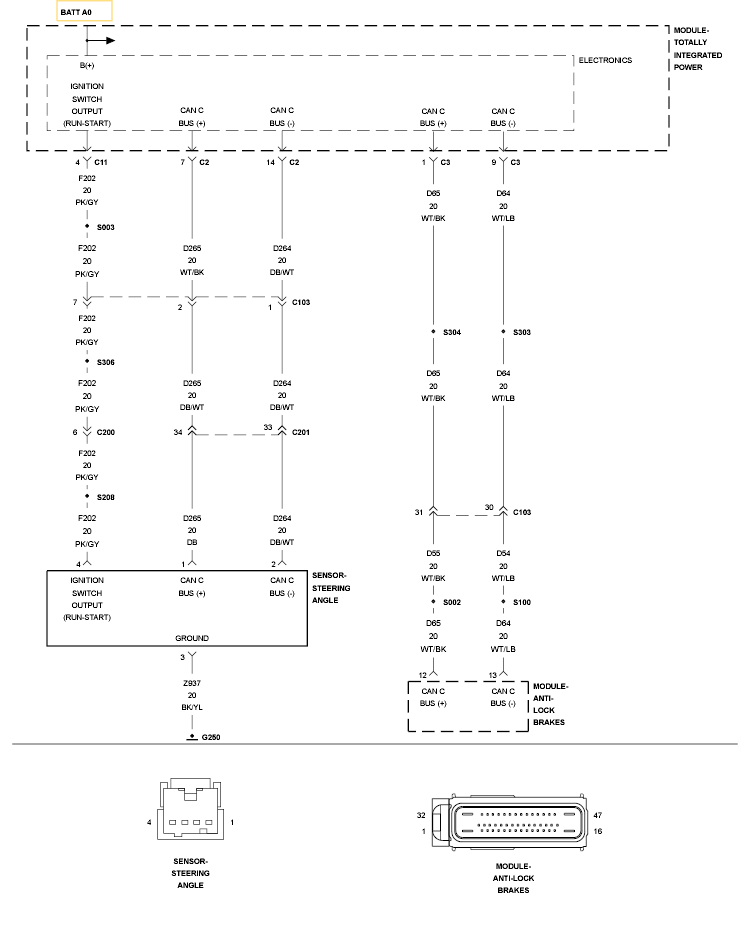

Fig 1: Steering Angle Sensor Circuit

GC0123577

Courtesy of CHRYSLER LLC
