Circuit Schematic

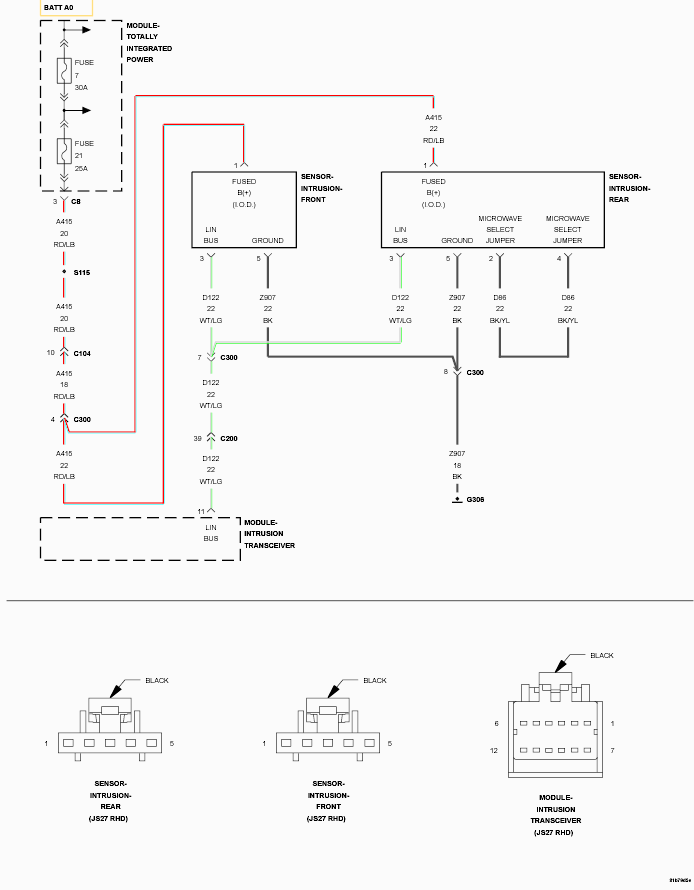

Fig 1: Front & Rear Intrusion Sensor Circuit Schematic

GC0123646

Courtesy of CHRYSLER LLC
