INSULATOR, Engine Mount, Right: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

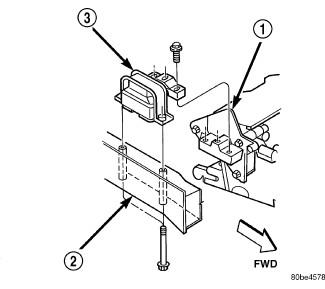

Fig 1: ENGINE MOUNTING RIGHT SIDE
GC0121677Courtesy of CHRYSLER LLC
1 - ENGINE SUPPORT BRACKET
2 - FRAME RAIL
3 - RIGHT ENGINE MOUNT
  1. Position right engine mount and install frame rail (2) to mount bolts. Tighten bolts to 61 N.m (45 ft. lbs.).
  2. Install the mount to engine support bracket bolts and tighten to 61 N.m (45 ft. lbs.
  3. Raise vehicle on a hoist.
  4. Install heater tube rear attaching screw.
  5. Install inner splash shield and lower vehicle.
  6. Install heater tube front attaching screw.
  7. Install coolant bottle.
