DAMPER, Vibration: Installation: Installation
WARNING: This page is about a different variant/trim than selected.

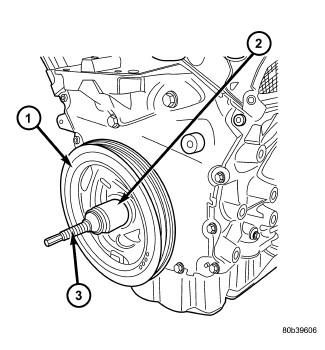

| 1 - VIBRATION DAMPER |
| 2 - SPECIAL TOOL 6792-1 |
| 3 - SPECIAL TOOL 8179 |
- Install damper using Special Tools 8179 (3) Screw, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (2).
- Install damper center bolt. Tighten center bolt to 170 N.m (125 ft. lbs.).
- Install accessory drive belts. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation .
- Install belt splash shield and right front wheel.
- Lower vehicle.
- Connect negative battery cable.
