DAMPER, Vibration: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

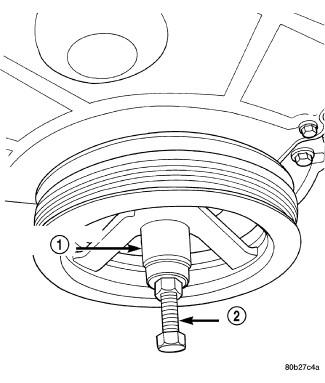

Fig 1: Crankshaft Damper-Installation
GC0095486Courtesy of CHRYSLER LLC
  1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt (2), with Nut and Thrust Bearing from 6792, and 6792-1 (1) Installer.
  2. Install vibration damper bolt. Torque bolt to 95 N.m (70 ft. lbs.).
  3. Install the lower crossmember. Refer to Frame and Bumpers/Frame/CROSSMEMBER - Installation .
  4. Install accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation .
  5. Install the accessory drive belt splash shield and right front wheel.
  6. Lower vehicle.
  7. Install the right engine mount. See Engine/Engine Mounting/INSULATOR, Engine Mount - Installation .
  8. Connect the negative battery cable.
