Adjuster, Seat Belt Turning Loop: Removal: Removal

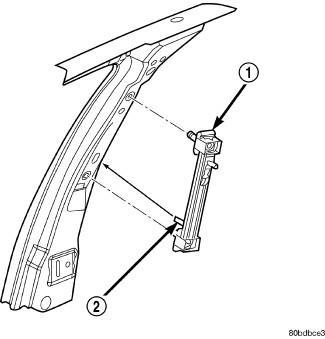

Fig 1: Front Seat Belt Height Adjuster

Courtesy of CHRYSLER LLC

WARNING: Front seat belt assemblies must be replaced after a collision.

1. Remove B-pillar trim. Refer to Body/Interior/PANEL, B-Pillar Trim - Removal .
2. Remove the two bolts attaching front seat belt height adjuster (1) to B-pillar.
3. Remove front seat belt height adjuster (1) from vehicle.
