Windshield Washer Pump Connector End View

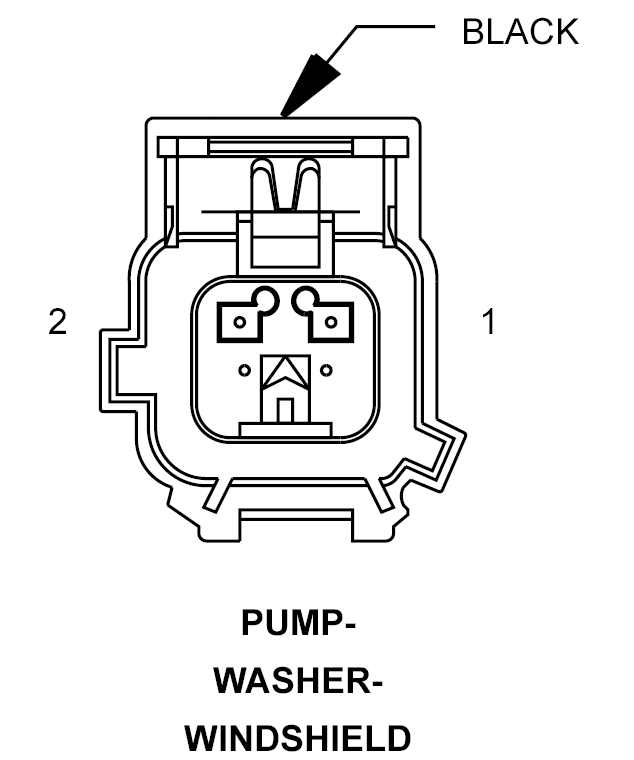

PUMP-WASHER-WINDSHIELD - BLACK 2-WAY

GPT780265Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
2 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
