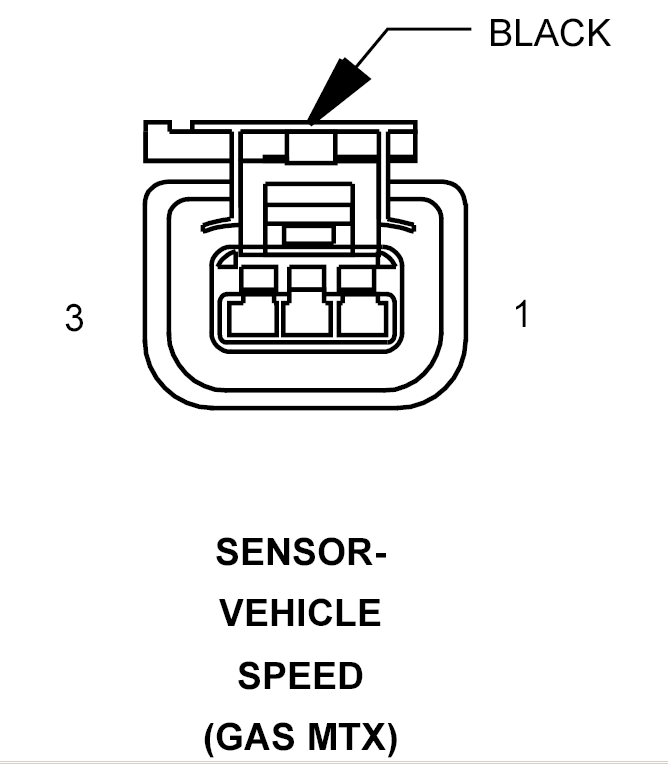

Vehicle Speed Sensor (Gas M/T) Connector End View
SENSOR-VEHICLE SPEED - BLACK 3-WAY (GAS MTX)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K875 20OR/PK |
VSS 5V SUPPLY (1.6L) |
| 1 |
F856 20OR |
5 VOLT SUPPLY (EXCEPT 1.6L) |
| 2 |
K975 20BR/OR |
VSS GROUND (1.6L) |
| 2 |
K914 20BK/LB |
SENSOR GROUND 1 (EXCEPT 1.6L) |
| 3 |
K75 20WT/OR |
VEHICLE SPEED SIGNAL |
