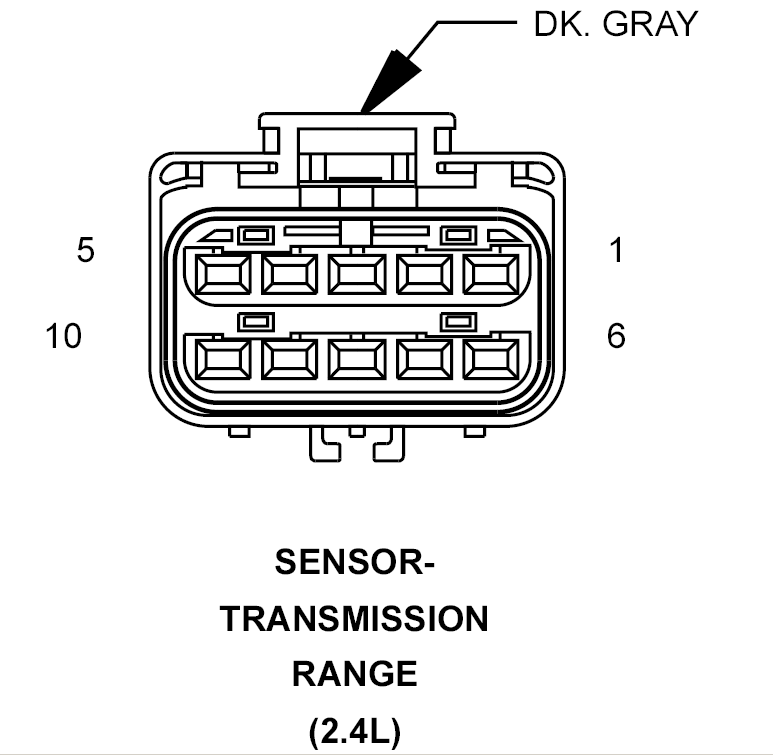

Transmission Range Sensor (2.4L) Connector End View
SENSOR-TRANSMISSION RANGE - DK. GRAY 10-WAY (2.4L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
T13 18DB/BK |
SPEED SENSOR GROUND |
| 4 |
T54 18VT/PK |
TRANSMISSION TEMPERATURE SENSOR SIGNAL |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
T1 18LG/BK |
TRS T1 SENSE |
| 8 |
T3 18VT |
TRS T3 SENSE |
| 9 |
T42 18VT/WT |
TRS T42 SENSE |
| 10 |
T41 18BK/WT |
TRS T41 SENSE |
