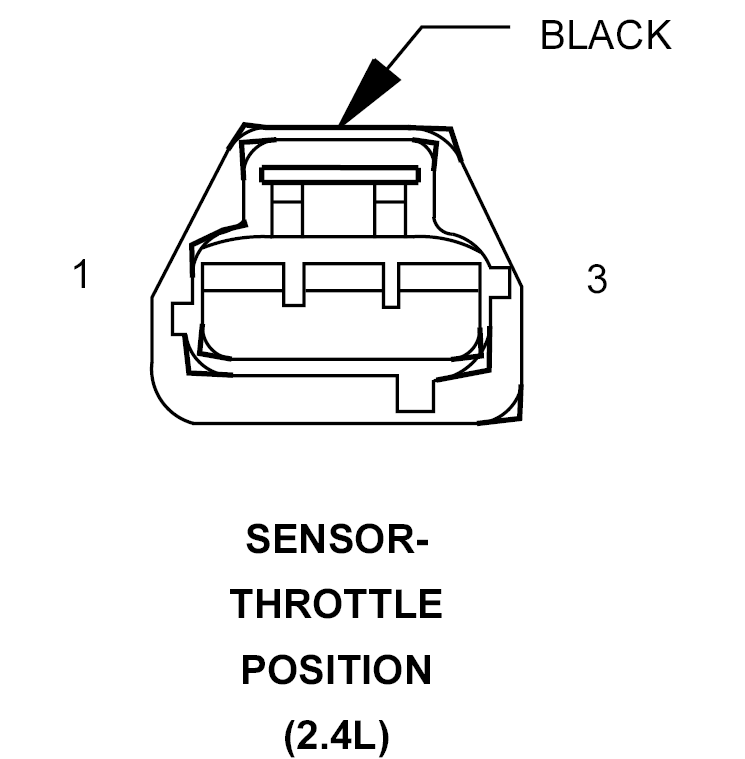

Throttle Position Sensor (2.4L) Connector End View
SENSOR-THROTTLE POSITION - BLACK 3-WAY (2.4L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F855 20OR |
5 VOLT SUPPLY |
| 2 |
K22 20OR/DB |
TP SIGNAL |
| 3 |
K900 20BK/LB |
SENSOR GROUND (EXCEPT HO TURBO) |
| 3 |
K900 20OR |
SENSOR GROUND (HO TURBO) |
