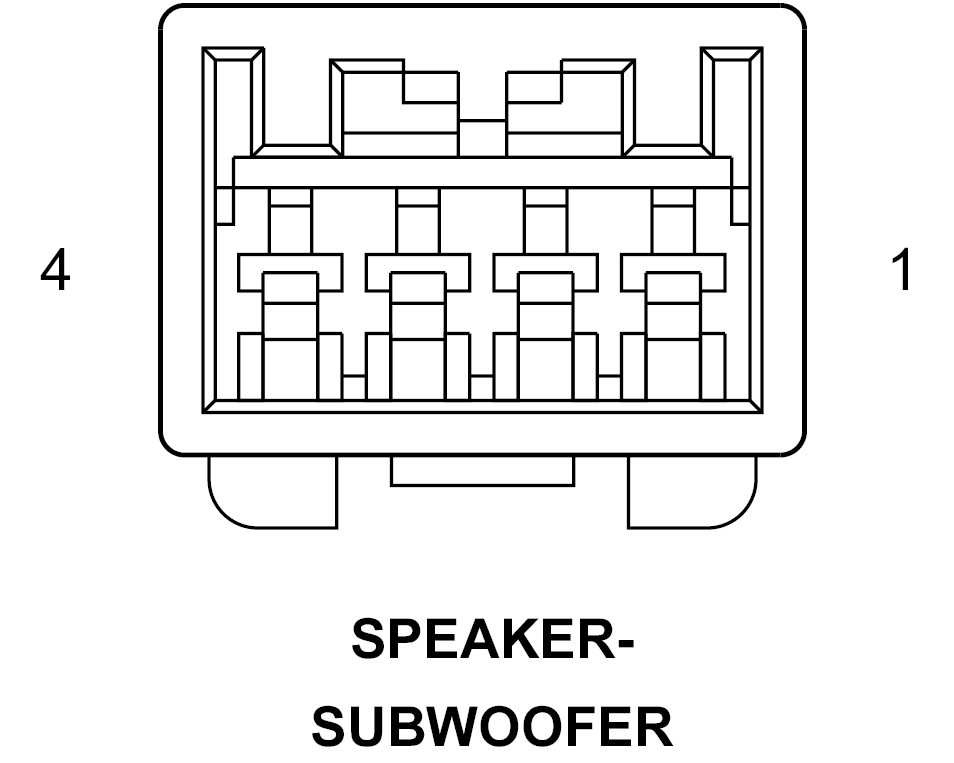

Subwoofer Speaker Connector End View
SPEAKER-SUBWOOFER - 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X300 18GY/BR |
AMPLIFIED SUBWOOFER 1 (+) |
| 2 |
X390 18DG/BR |
AMPLIFIED SUBWOOFER 1 (-) |
| 3 |
X301 18GY/WT |
AMPLIFIED SUBWOOFER 2 (+) |
| 4 |
X391 18DG/WT |
AMPLIFIED SUBWOOFER 2 (-) |
