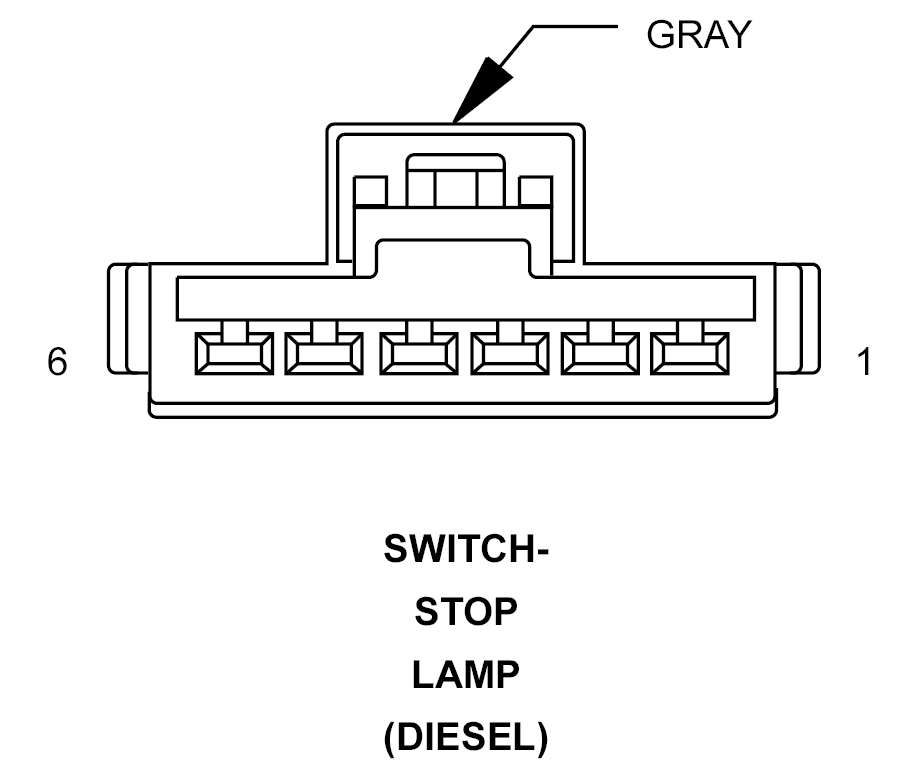

Stop Lamp Switch (Diesel) Connector End View
SWITCH-STOP LAMP - GRAY 6-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A924 18RD |
FUSED B(+) |
| 2 |
L53 18DG/WT |
PRIMARY BRAKE SWITCH SIGNAL |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
Z902 20BK |
GROUND |
| 6 |
B15 20DG/WT |
SECONDARY BRAKE SWITCH SIGNAL |
