Right Rear Wheel Speed Sensor Connector End View

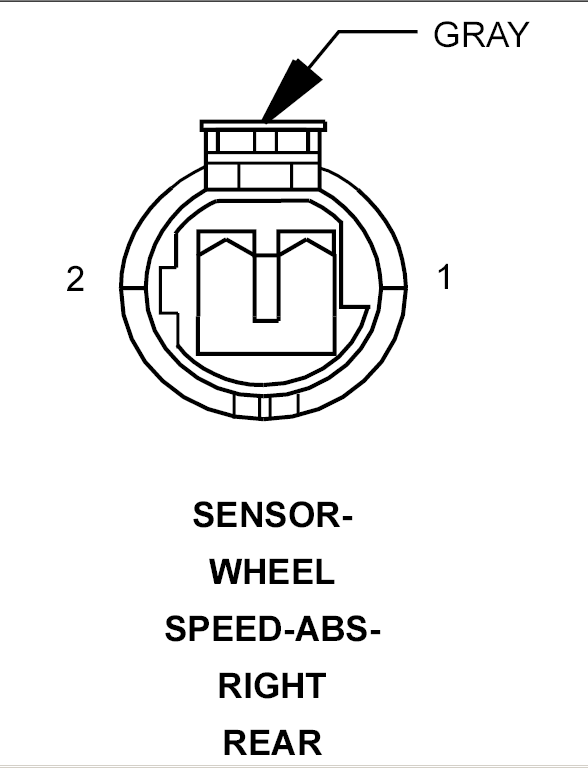

SENSOR-WHEEL SPEED-ABS-RIGHT REAR - GRAY 2-WAY

GPT780314Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 B2 18YL RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B1 18YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
