Right Front Window Motor (Hatchback) Connector End View
Right Front Window Motor (Hatchback) Connector End View

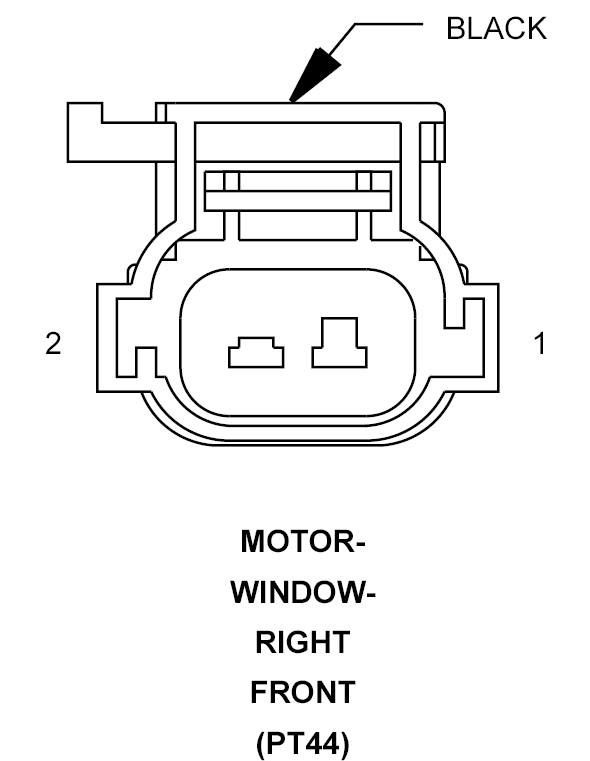

MOTOR-WINDOW-RIGHT FRONT - BLACK 2-WAY (PT44)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q22 14OR/VT
RIGHT FRONT WINDOW DRIVER (DOWN)
2
Q12 14OR/BR
RIGHT FRONT WINDOW DRIVER (UP)
