Right Front Fog Lamp Connector End View

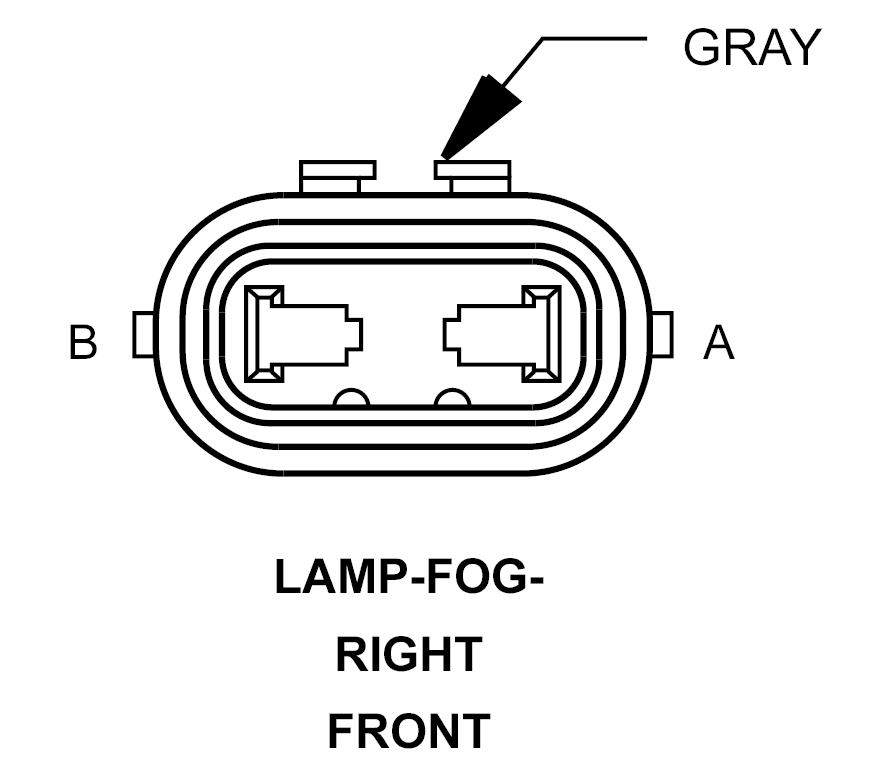

LAMP-FOG-RIGHT FRONT - GRAY 2-WAY

GPT780158Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L90 18WT/OR FRONT FOG LAMP CONTROL OUTPUT
B Z904 20BK GROUND
