Recirculation Door Actuator Connector End View

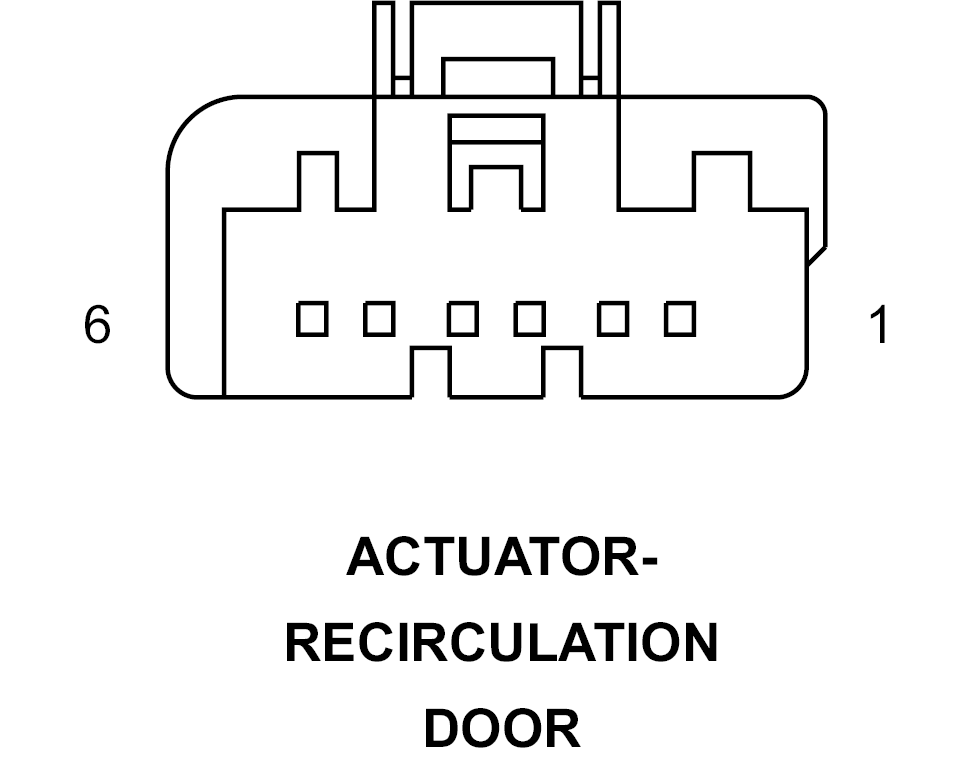

ACTUATOR-RECIRCULATION DOOR - 6-WAY

GPT780001Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
3 - -
4 - -
5 - -
6 C132 22DB/YL RECIRCULATION DOOR DRIVER (B)
