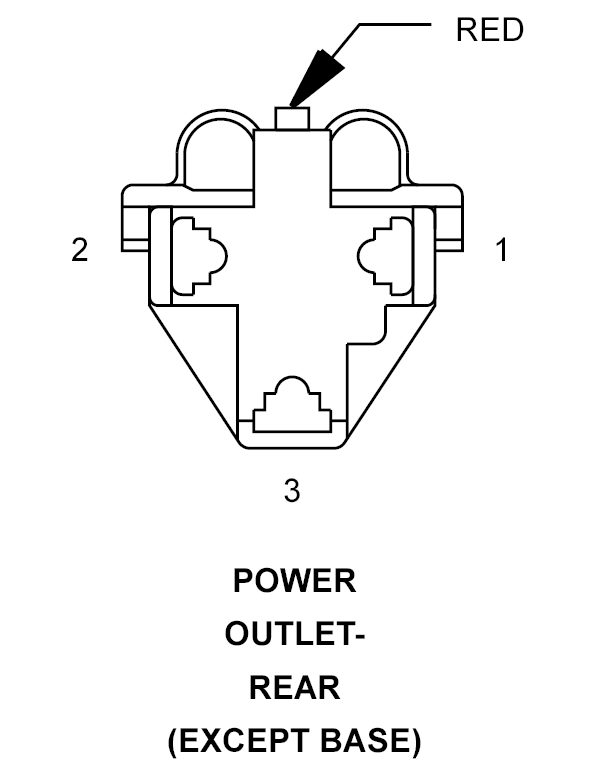

Rear Power Outlet (Except Base) Connector End View
POWER OUTLET-REAR - RED 3-WAY (EXCEPT BASE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F985 16PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN-ACC) (PT27) |
| 1 |
F985 16PK/RD |
FUSED IGNITION SWITCH OUTPUT (RUN-ACC) (PT44) |
| 2 |
- |
- |
| 3 |
Z909 16BK |
GROUND |
