Negative Battery (Diesel) Connector End View

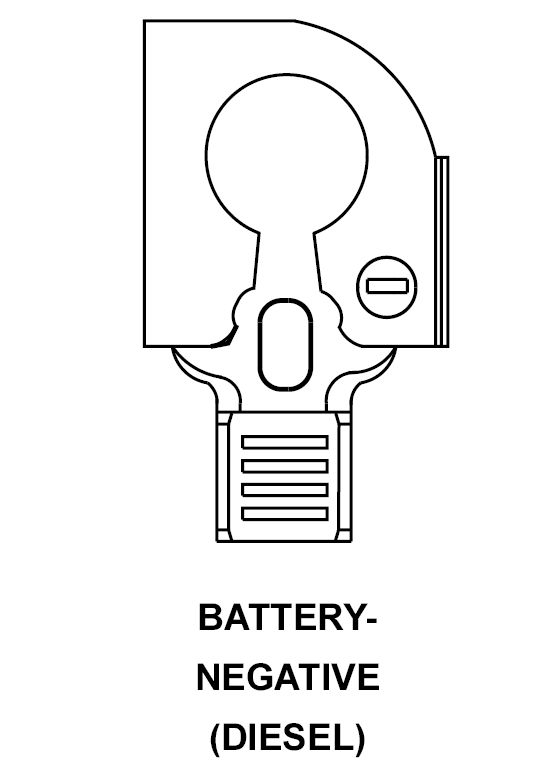

BATTERY-NEGATIVE - 1-WAY (DIESEL)

GPT780017Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z912 1BK GROUND
1 Z913 1BK GROUND
