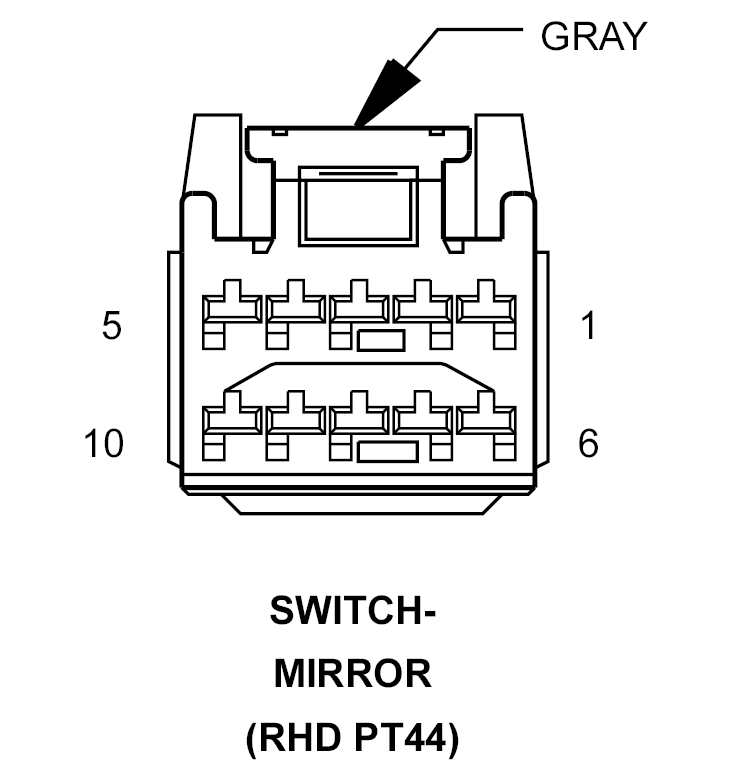

Mirror Switch (RHD Hatchback) Connector End View
SWITCH-MIRROR - GRAY 10-WAY (RHD PT44)
| CAV | CIRCUIT | FUNCTION |
| 1 | P110 20LG/WT | FOLDING MIRROR RETURN |
| 2 | E12 20OR/GY | PANEL LAMPS DRIVER |
| 3 | P76 20TN/LB | LEFT/RIGHT MIRROR RIGHT/DOWN MOVEMENT |
| 4 | Z908 20BK | GROUND |
| 5 | A417 20RD | FUSED B(+) |
| 6 | P72 20YL | RIGHT MIRROR UP MOVEMENT |
| 7 | P71 20BR/YL | RIGHT MIRROR UP MOVEMENT (PT27) |
| 7 | P71 20YL/BK | RIGHT MIRROR UP MOVEMENT (PT44) |
| 8 | P74 20DB/OR | RIGHT MIRROR LEFT MOVEMENT |
| 9 | P75 20DB/WT | LEFT MIRROR LEFT MOVEMENT |
| 10 | P699 20LG/DG | MIRROR-POWER FOLDING/UNFOLDING |
