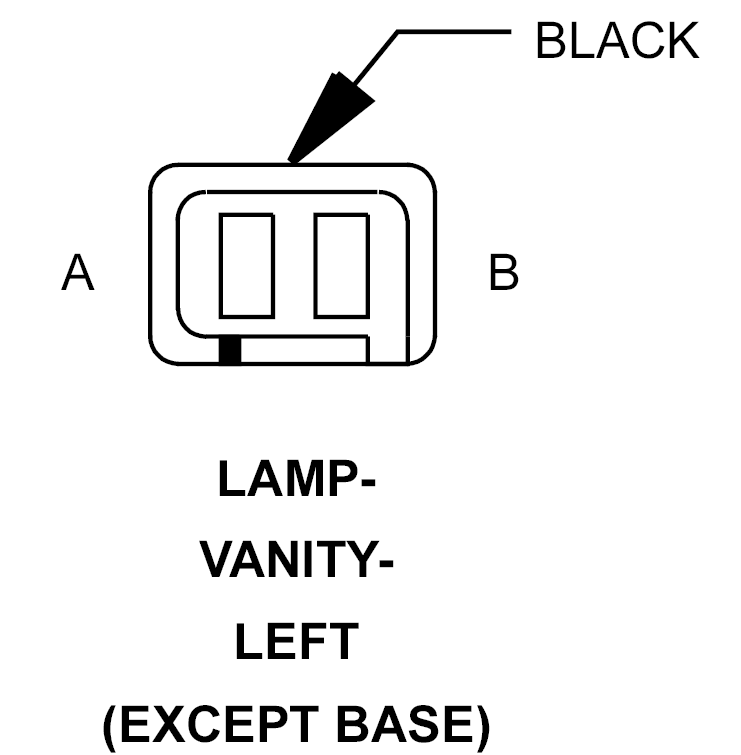

Left Vanity Lamp (Except Base) Connector End View
LAMP-VANITY-LEFT - BLACK 2-WAY (EXCEPT BASE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
A415 20RD |
FUSED B(+) (I.O.D.) (LHD) |
| A |
M27 20YL/LB |
READING/RAIL LAMPS DRIVER (RHD) |
| B |
G38 20GY |
UGDO ENABLE CONTROL CIRCUIT (LHD) |
| B |
Z906 20BK |
GROUND (RHD) |
