Left Tail Stop Lamp Connector End View

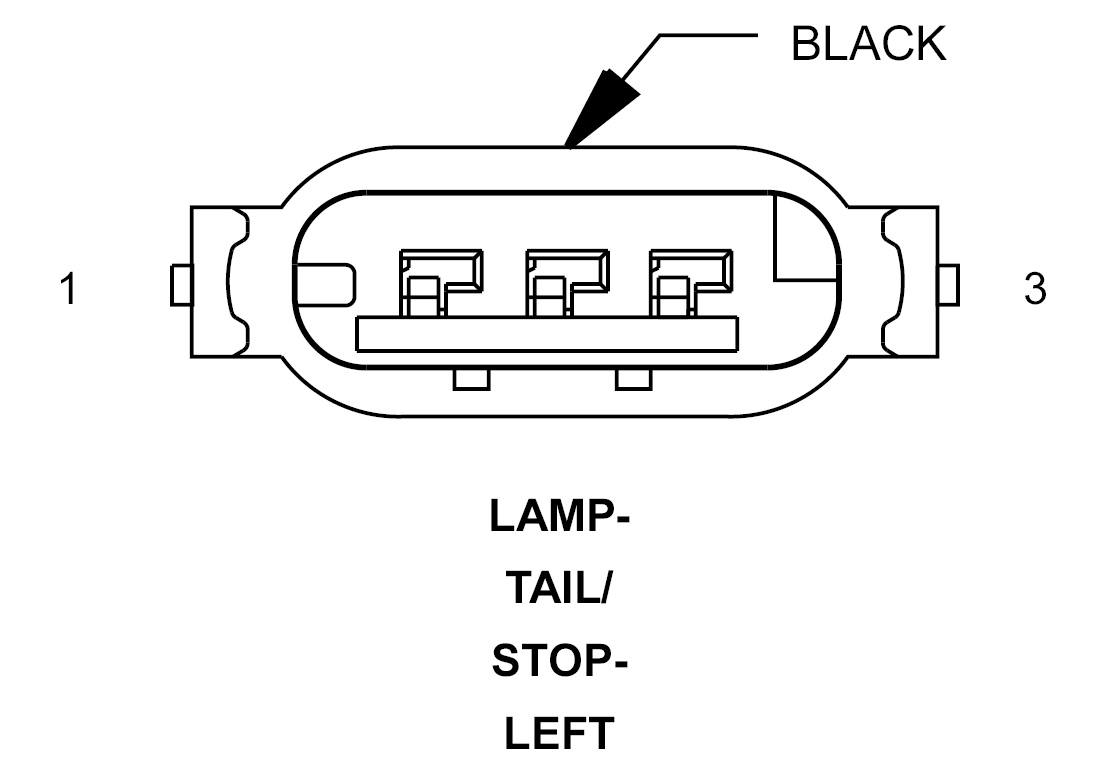

LAMP-TAIL/STOP-LEFT - BLACK 3-WAY

GPT780177Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L55 20WT/OR STOP LAMP CONTROL OUTPUT
2 L217 20WT/VT PARK LAMP CONTROL OUTPUT
3 Z908 20BK GROUND
