Knock Sensor (Gas) Connector End View

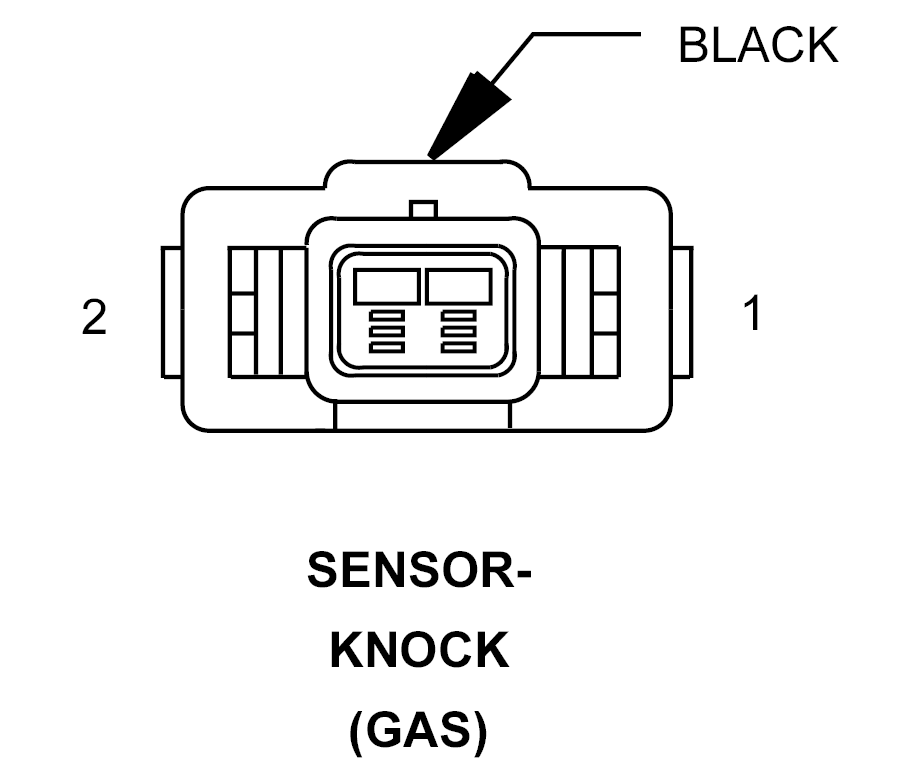

SENSOR-KNOCK - BLACK 2-WAY (GAS)

GPT780292Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K42 20DB/LG KS SIGNAL
2 K942 20BK/VT KS RETURN
