Generator (2.4L) Connector End View

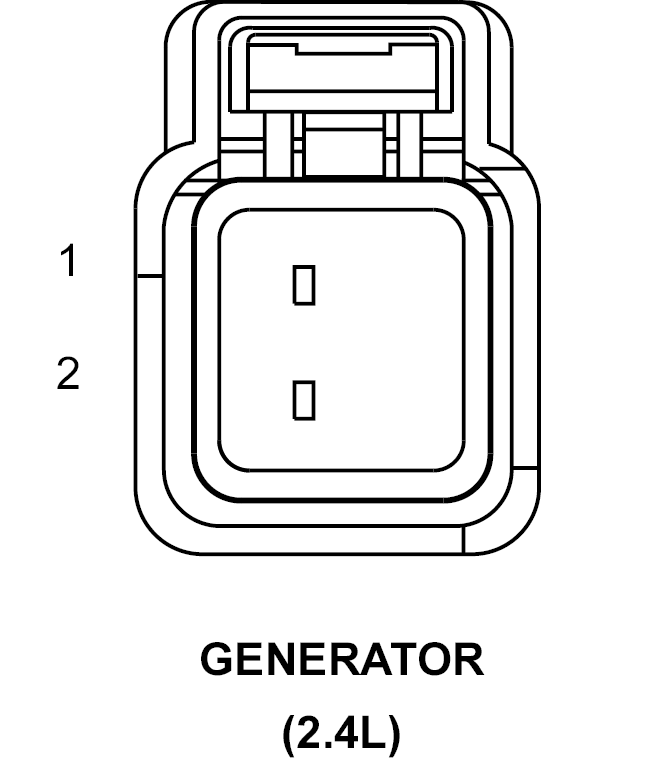

GENERATOR - 2-WAY (2.4L)

GPT780114Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K20 18BK GEN FIELD CONTROL
2 A803 16DG GEN SENSE
