Generator (2.4L Turbo) Connector End View

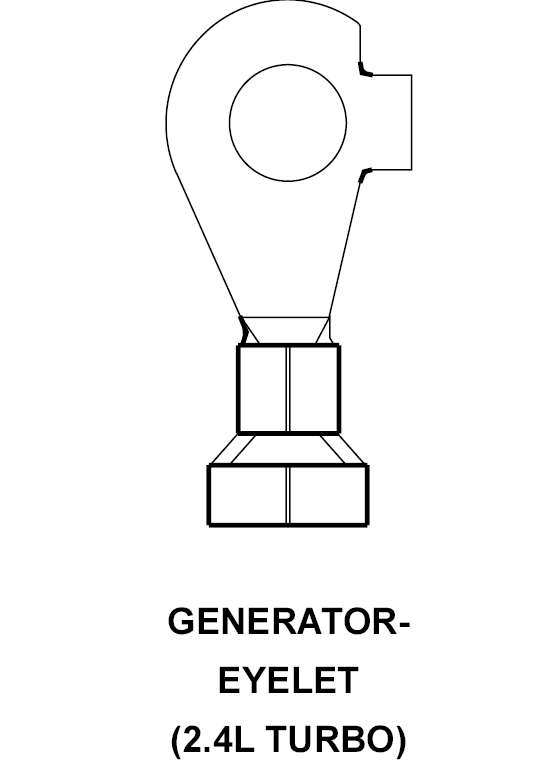

GENERATOR-EYELET - 1-WAY (2.4L TURBO)

GPT780116Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A801 4BK/GY B(+)
