Generator (1.6L) Connector End View

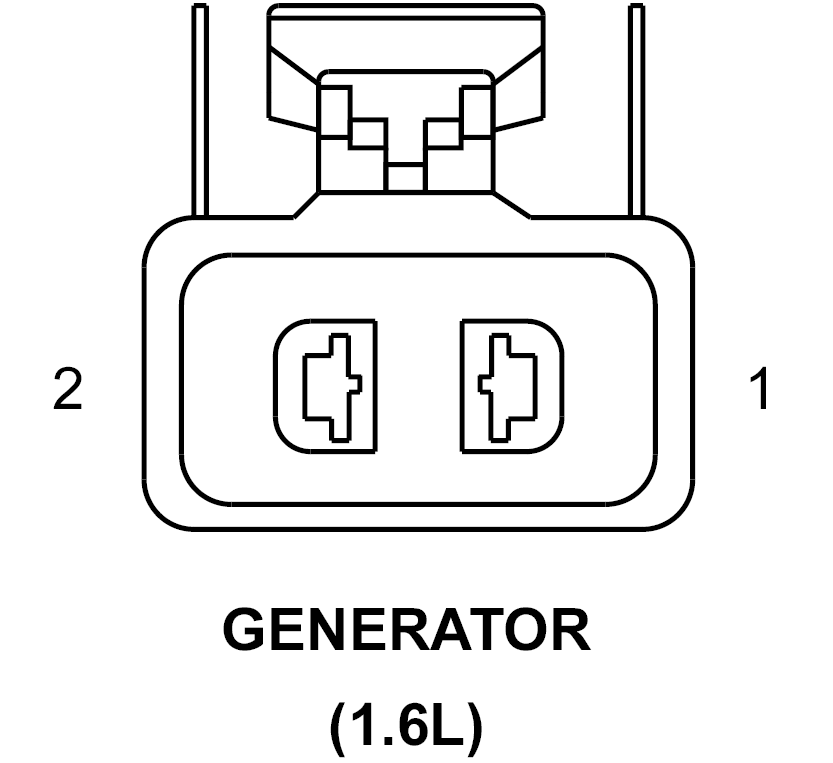

GENERATOR - 2-WAY (1.6L)

GPT780113Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 K125 18DG GEN FIELD CONTROL
