Fuel Temperature Sensor (Diesel) Connector End View

SENSOR-FUEL TEMPERATURE - BLACK 2-WAY (DIESEL)

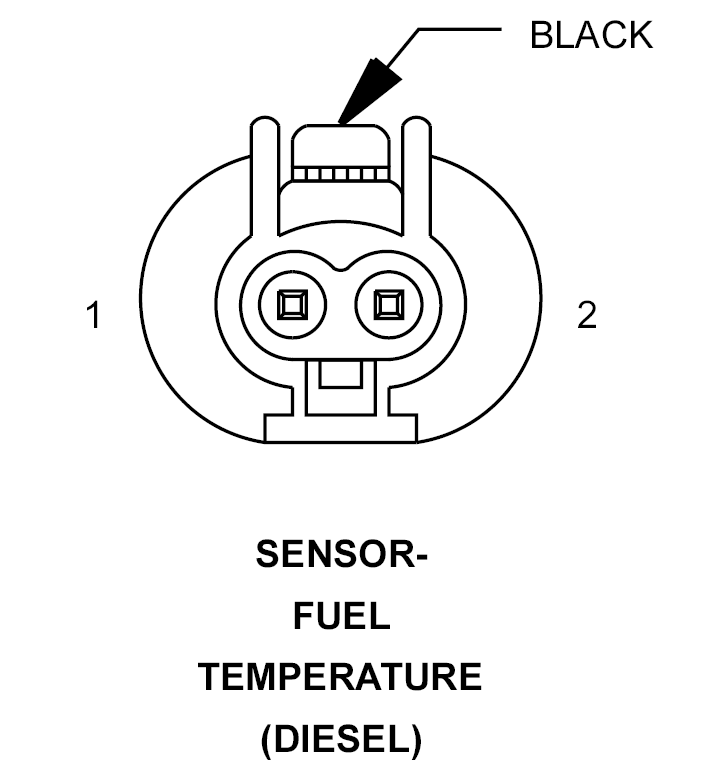

GPT780286Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K900 20LB/LG SENSOR GROUND
2 K156 20LB/RD FUEL TEMPERATURE SENSOR SIGNAL
