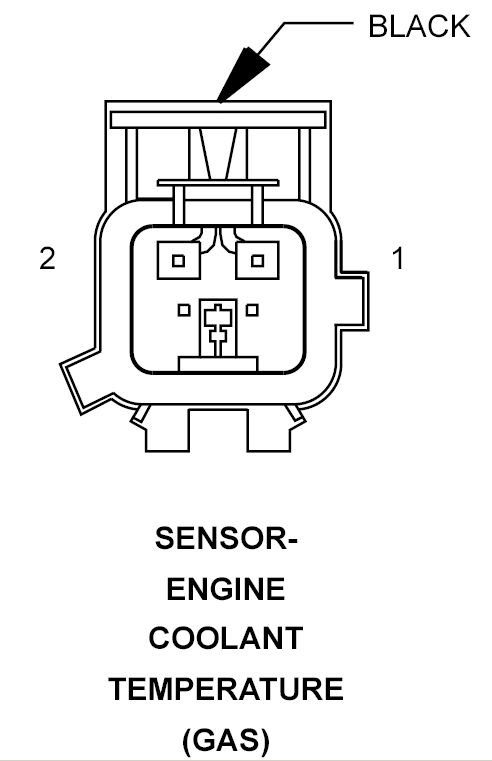

Engine Coolant Temperature Sensor (Gas) Connector End View
SENSOR-ENGINE COOLANT TEMPERATURE - BLACK 2-WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K915 20BK/LB |
ECT GROUND (1.6L) |
| 1 |
K900 20BK/LB |
SENSOR GROUND (EXCEPT 1.6L) |
| 2 |
K2 20TN/BK |
ECT SIGNAL |
