Engine Coolant Temperature Sensor (Diesel) Connector End View

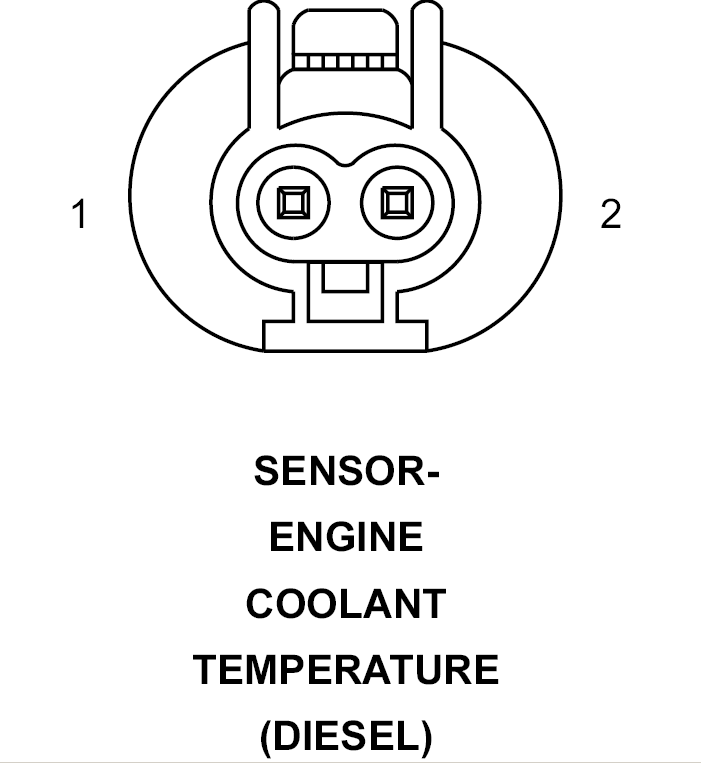

SENSOR-ENGINE COOLANT TEMPERATURE - 2-WAY (DIESEL)

GPT780281Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K2 20LG/RD ECT SIGNAL
2 K900 20BR/RD SENSOR GROUND
