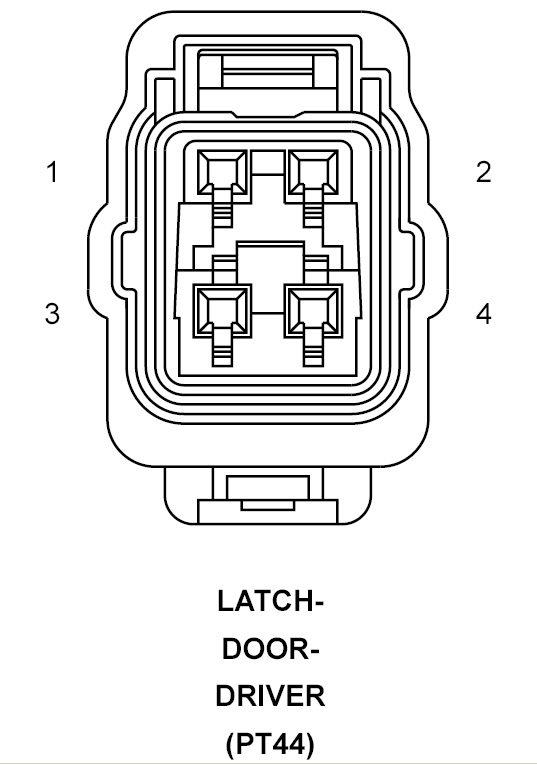

Driver Door Latch (Hatchback) Connector End View
LATCH-DOOR-DRIVER - 4-WAY (PT44)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G75 20TN |
LEFT FRONT DOOR AJAR SWITCH SENSE (LHD) |
| 1 |
G74 20TN |
RIGHT FRONT DOOR AJAR SWITCH SENSE (RHD) |
| 2 |
Z907 20BK |
GROUND |
| 3 |
P238 18TN/DG |
DRIVER DOOR UNLOCK DRIVER |
| 4 |
P33 18TN/DB |
DOOR LOCK DRIVER |
