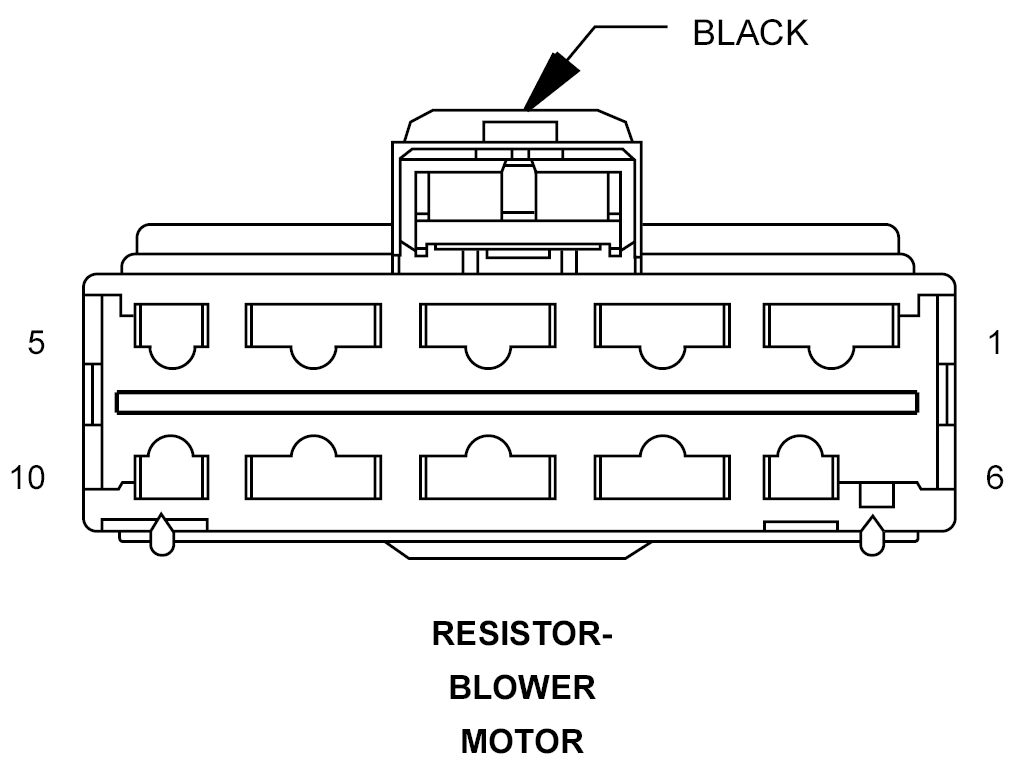

Blower Motor Resistor Connector End View
RESISTOR-BLOWER MOTOR - BLACK 10-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C72 14LG |
FRONT BLOWER M1 SPEED |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
C71 14TN |
FRONT BLOWER LOW SPEED |
| 6 |
- |
- |
| 7 |
C73 14LB |
FRONT BLOWER M2 SPEED |
| 8 |
- |
- |
| 9 |
C70 12BK/TN |
BLOWER MOTOR HIGH SPEED |
| 10 |
- |
- |
