Blower Motor Connector End View

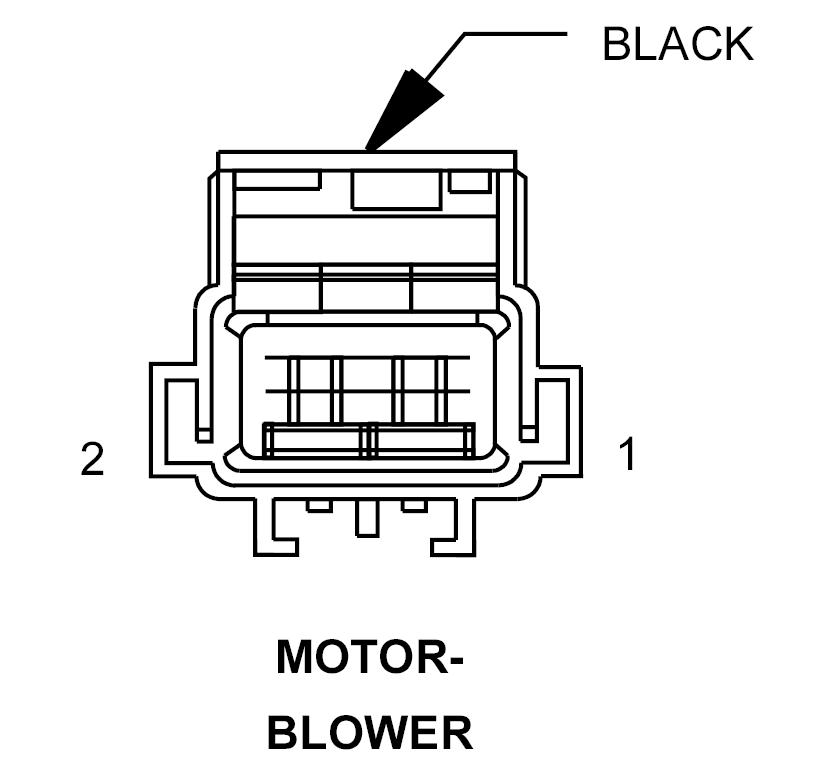

MOTOR-BLOWER - BLACK 2-WAY

GPT780243Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C7 14DB BLOWER MOTOR CONTROL
2 C70 14DB/YL BLOWER MOTOR HIGH SPEED
