Battery Temperature Sensor (Diesel) Connector End View

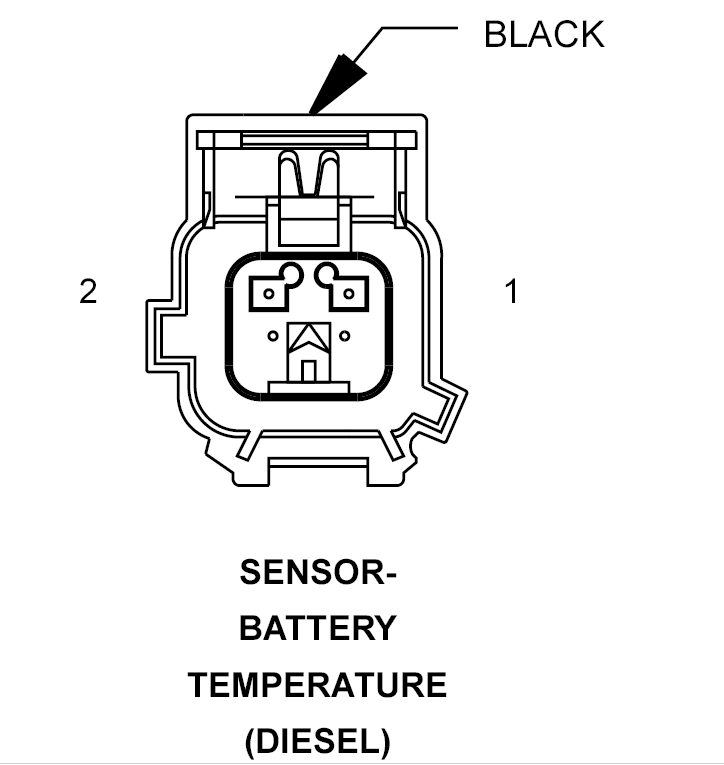

Battery Temperature Sensor (Diesel) Connector End View
SENSOR-BATTERY TEMPERATURE - BLACK 2-WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K25 20DB/VT
BATTERY TEMP SIGNAL
2
K91 20DB/YL
BATTERY TEMP RETURN
Courtesy of CHRYSLER CORP.
