Backup Lamp Switch (M/T Diesel) Connector End View

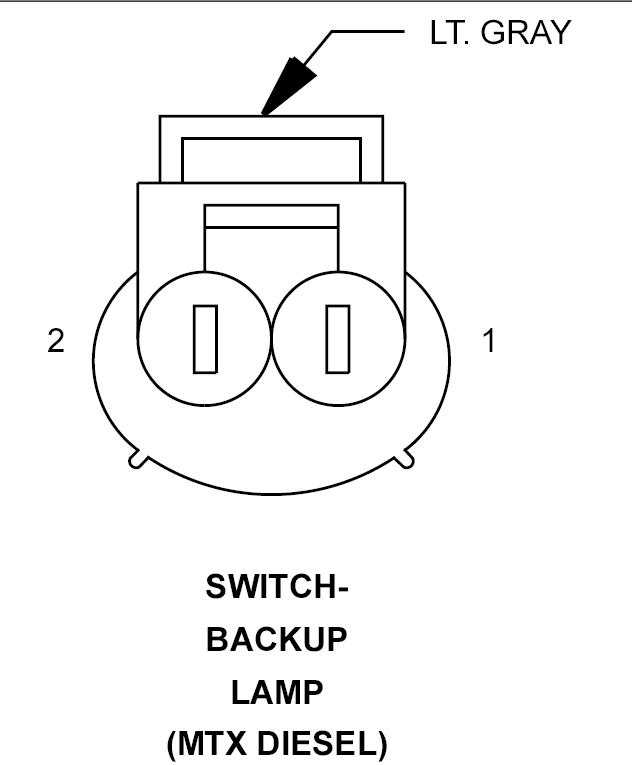

SWITCH-BACKUP LAMP - LT. GRAY 2-WAY (MTX DIESEL)

GPT780348Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L1 18VT/BK BACKUP LAMP SWITCH OUTPUT
2 Z902 18WT GROUND
