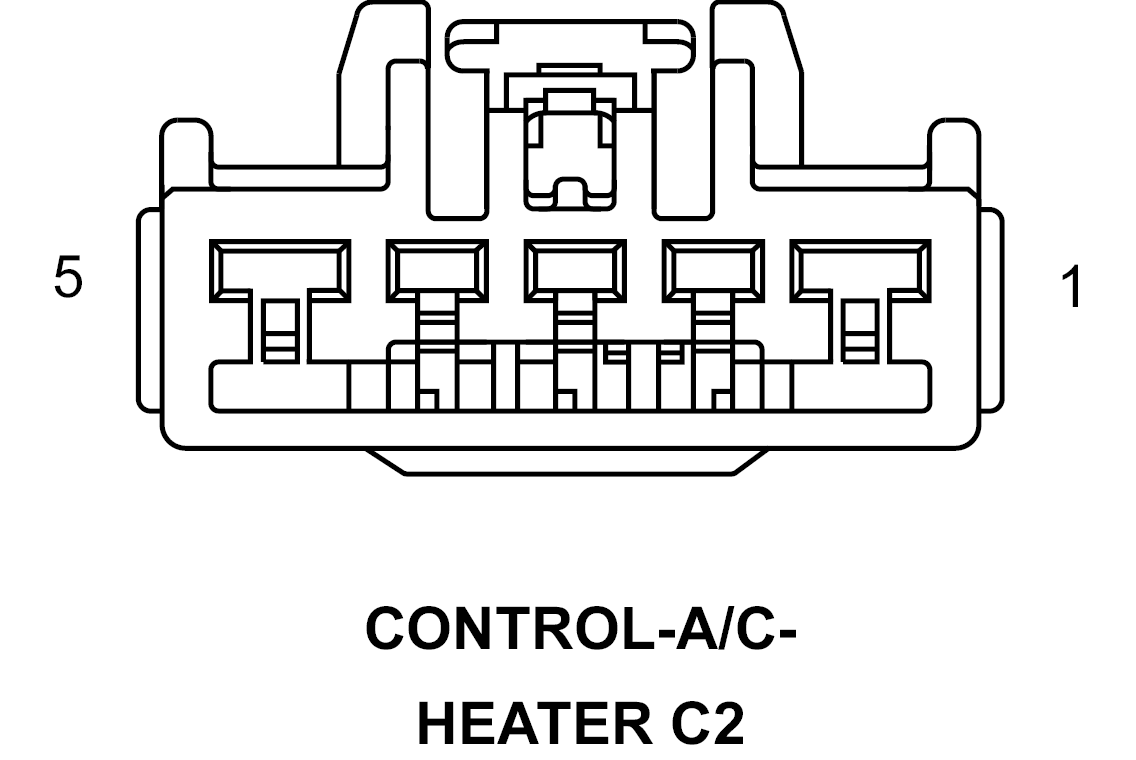

A/C Heater Control Connector End View (C2)
CONTROL-A/C-HEATER C2 - 5-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C70 14DB/YL |
BLOWER MOTOR HIGH SPEED |
| 2 |
C73 14DB/VT |
FRONT BLOWER M2 SPEED |
| 3 |
C72 14DB/OR |
FRONT BLOWER M1 SPEED |
| 4 |
C71 14DB/BR |
FRONT BLOWER LOW SPEED |
| 5 |
Z906 14BK |
GROUND |
