P0501-Vehicle Speed Sensor #1 Performance (Manual Trans): Notes

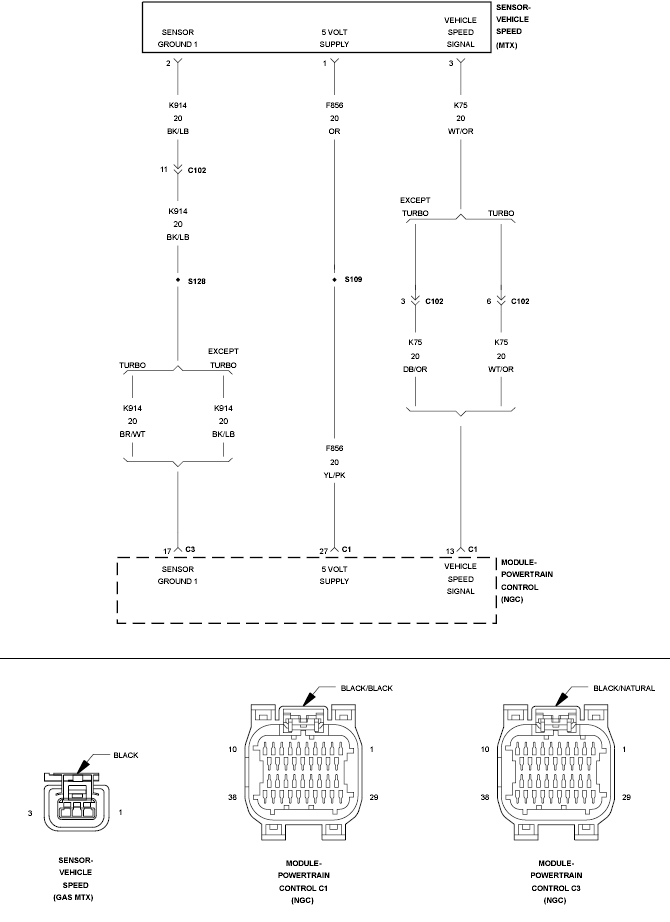

Fig 1: Vehicle Speed Sensor Circuit

GC0117273

Courtesy of CHRYSLER LLC
