No Response From WCM (Wireless Control Module) (Sentry Key Remote Entry Module): Notes

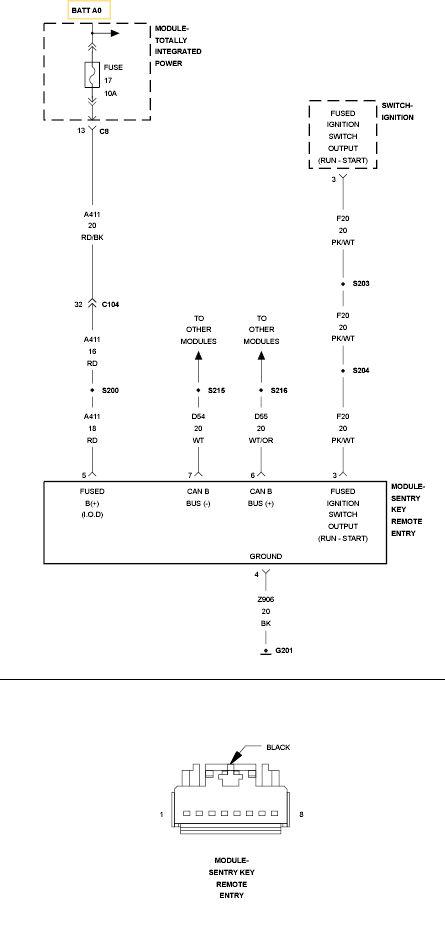

Fig 1: Wireless Control Module & Sentry Key Remote Entry Module Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A411) FUSED B(+) CIRCUIT OPEN OR SHORTED
(Z906) GROUND CIRCUIT OPEN
(F20) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED
(D55) AND (D54) CAN B BUS CIRCUITS OPEN
WIRELESS CONTROL MODULE
