B218C-Ignition Run Control 2 Circuit OVERCURRENT: Notes

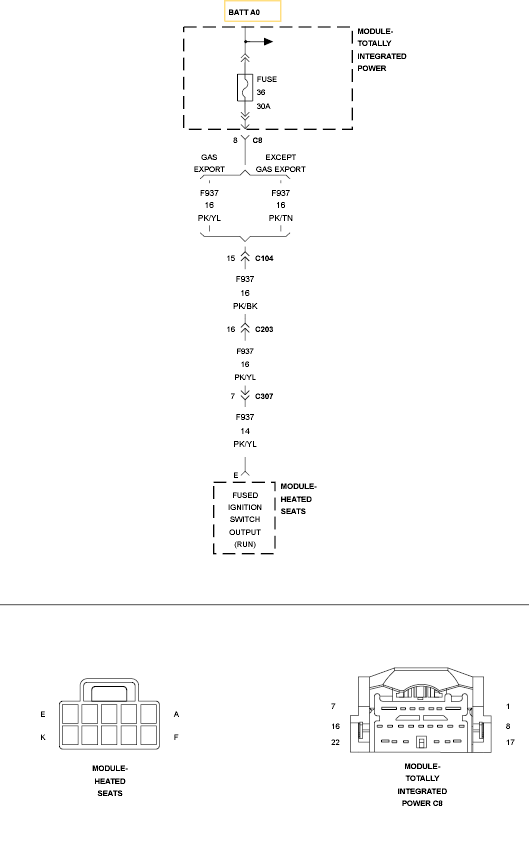

Fig 1: Ignition Run Control 2 Circuit

GC0117480

Courtesy of CHRYSLER LLC
