SENSOR, Speed, Output: Installation: Installation

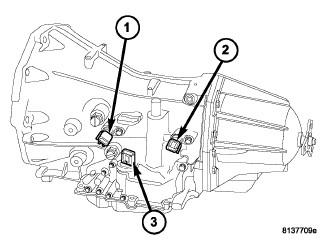

Fig 1: Input Speed Sensor

Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR

2 - OUTPUT SPEED SENSOR

3 - TRANSMISSION RANGE SENSOR

1. Install the output speed sensor (2) into the transmission case.
   NOTE: Before installing the speed sensor bolt, it will be necessary to replentish the sealing patch on the bolt using Mopar® Lock AND Seal Adhesive.
2. Install the bolt to hold the output speed sensor (2) into the transmission case. Tighten the bolt to 9 N.m (80 in.lbs.).
3. Install the wiring connector onto the output speed sensor (2).
4. Verify the transmission fluid level. Add fluid as necessary. See Transmission and Transfer Case/Automatic - 42RLE/FLUID and FILTER - Standard Procedure .
5. Lower vehicle.
