Diagnostic Test

CHECK IF THE DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, read TIPM DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Go to step 5
(T16) TRANSMISSION CONTROL OUTPUT CIRCUIT SHORT TO VOLTAGE

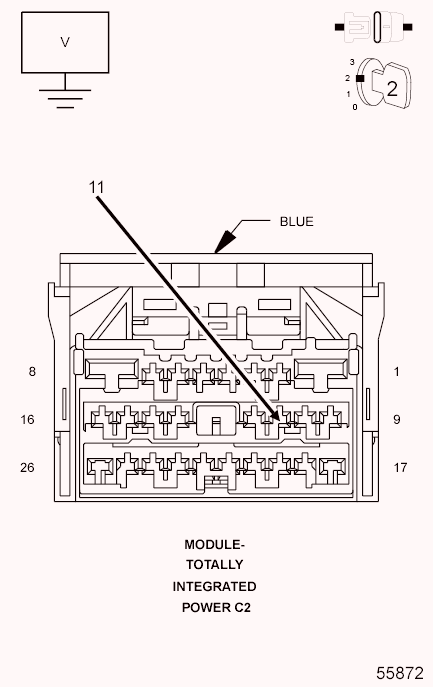

Fig 1: Checking (T16) Transmission Control Output Circuit Short To Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off
2. Disconnect the TIPM C10 harness connector.
3. Disconnect the PCM C4 harness connector.
4. Ignition on, engine not running.
5. Measure the voltage of the (T16) Transmission Control Output circuit.
  Is the voltage above 10.0 v?

  Yes
  - Repair the (T16) Transmission Control Output circuit for a short to voltage.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Go to step 3
CHECK THE (T16) TRANSMISSION CONTROL OUTPUT CIRCUIT FOR AN OPEN

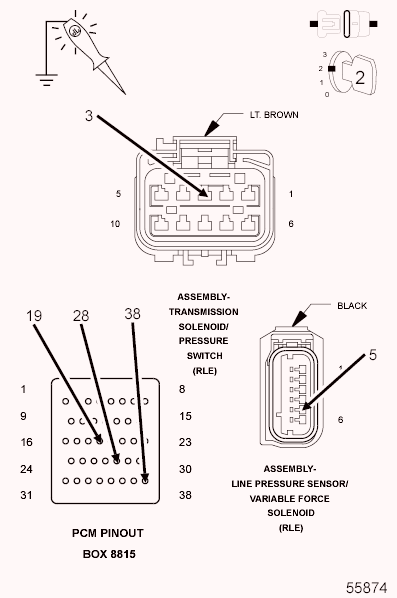

Fig 2: Checking (T16) Transmission Control Output Circuit For An Open
Courtesy of CHRYSLER LLC
1. Reconnect the TIPM C10 harness connector.
2. Ignition on, engine not running.
3. Using the scan tool under the TIPM Actuators, actuate the Transmission.
4. Using a 12-volt test light connected to ground, check the (T16) Transmission Control Output circuits.
  NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

  Does the test light illuminate brightly at all the (T16) Transmission Control Output circuits?

  Yes
  - Go to step 4
  No
  - Repair the (T16) Transmission Control Output circuit for an open.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
TOTALLY INTEGRATED POWER MODULE
1. Using the schematics as a guide, inspect the wire harness and connectors.
2. Check the TIPM harness connector terminals for corrosion, damage, or terminal push out
3. Pay particular attention to all power and ground circuits.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Totally Integrated Power Module per Service Information.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Test complete.
