Circuit Schematic

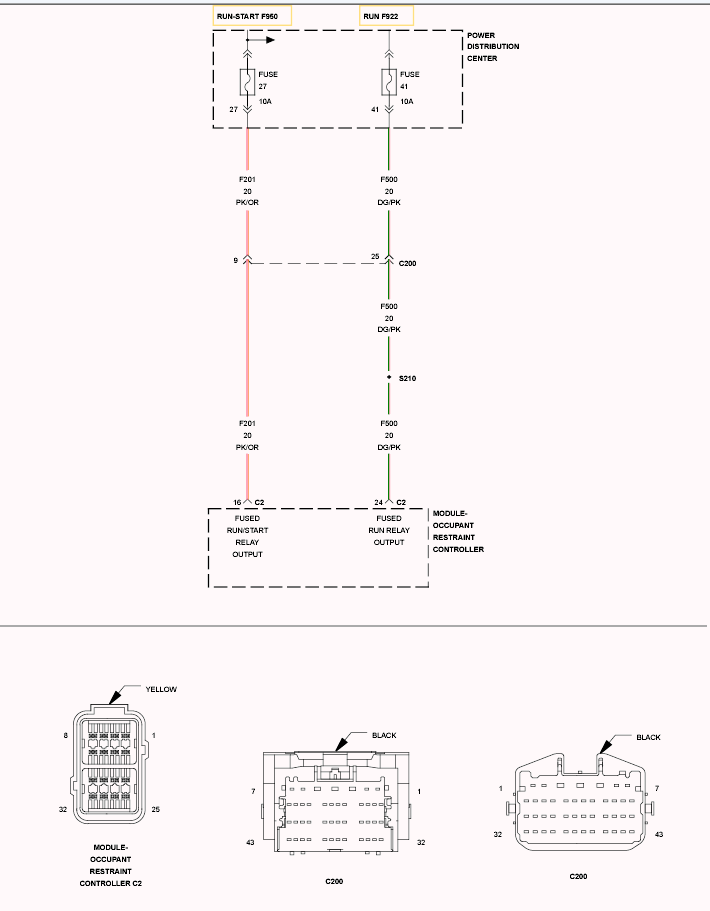

Fig 1: Fused Run/Start Relay Output Circuit Schematic

GC0096302

Courtesy of CHRYSLER LLC
