Circuit Schematic

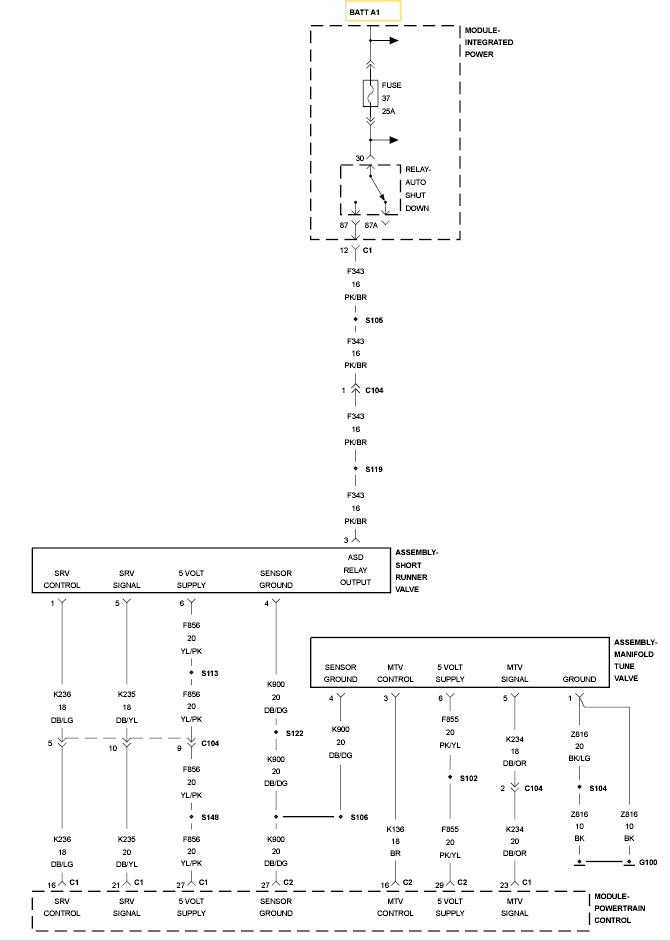

Fig 1: Manifold Tuning Valve Control Circuit Schematic

GC0097589

Courtesy of CHRYSLER LLC
