Home >> Chrysler >> 2009 >> 300 LX >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0315 To P0461 >> P0330-Knock Sensor 2 Circuit >> Circuit Schematic

Circuit Schematic

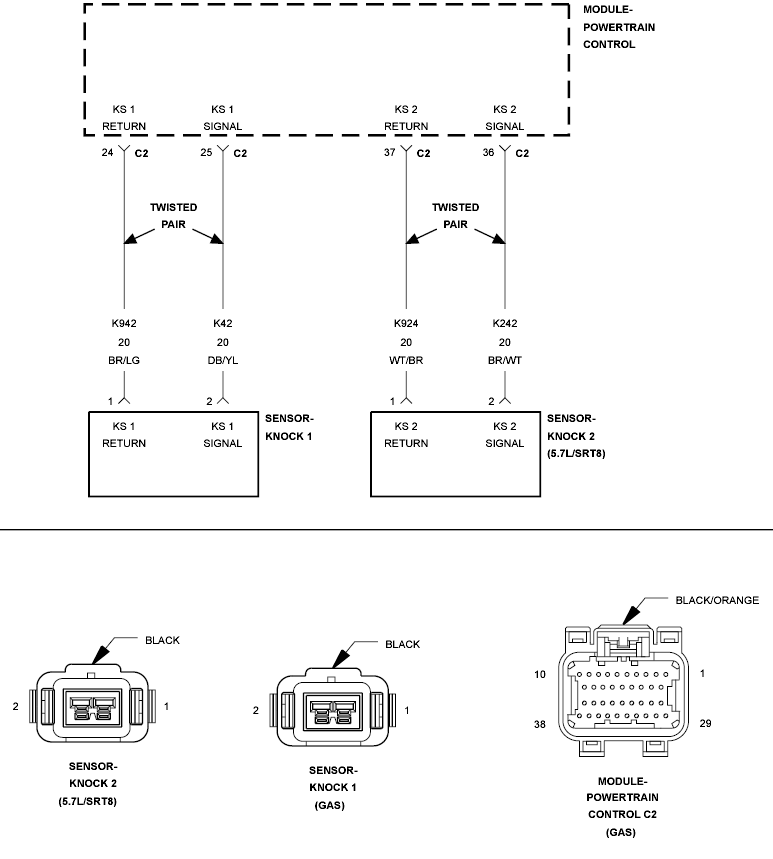

Fig 1: Knock Sensor Circuit Schematic

GC0097437

Courtesy of CHRYSLER LLC
