Circuit Schematic

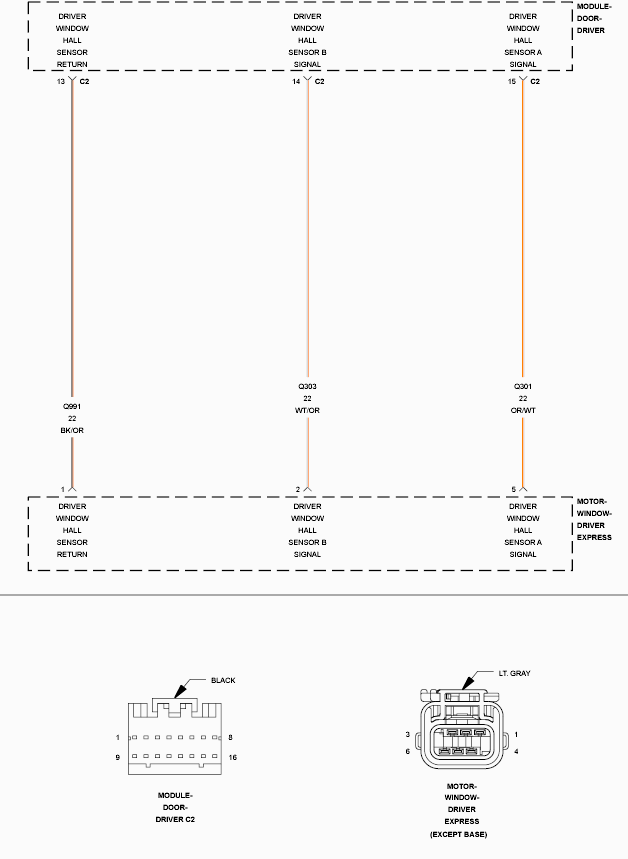

Fig 1: Driver Window Position Sensor Circuit Performance - Circuit Schematic

GC0096504

Courtesy of CHRYSLER LLC
